GCM-531直角底座用於三維平移台的連接，會用於兩部件互相垂直連接的場合。

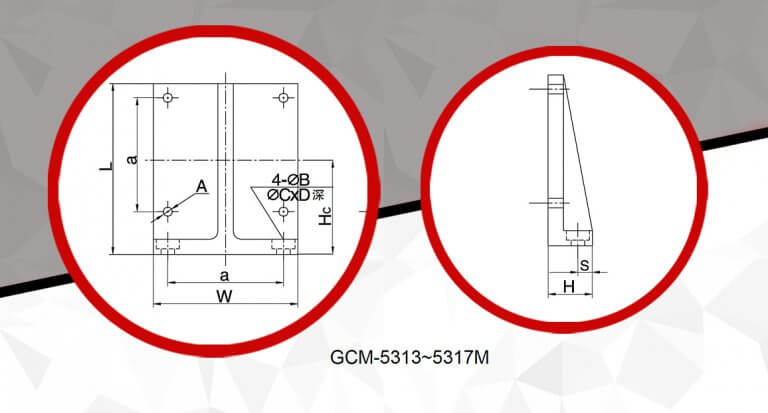

型號 | A | a | ØB | ØC | D | L | W | S | H | 重量(g) | Hc | 參考價格(未稅) |
GCM-5313M | M2 | 20 | 2.2 | 4 | 1.5 | 30 | 25 | 3.5 | 9.5 | 10 | 17.5 | NT568 |
GCM-5314M | M3 | 32 | 3.5 | 6 | 2.5 | 52 | 40 | 4 | 14.5 | 35 | 32 | NT618 |
GCM-5315M | M4 | 40 | 4.5 | 8 | 3 | 65 | 50 | 6 | 20 | 70 | 40 | NT618 |
GCM-5316M | M6 | 50 | 6.6 | 10.6 | 4 | 86 | 65 | 7 | 23 | 125 | 52.5 | NT694 |
GCM-5317M | M6 | 60 | 7 | 10.6 | 4 | 90 | 75 | 7.5 | 23 | 165 | 52.5 | NT694 |
GCM-531401M | M3 | – | – | – | – | – | – | – | – | 210 | 32 | NT2339 |
GCM-531601M | M6 | – | – | – | – | – | – | – | – | 330 | 52.5 | NT3098 |
