The combination of high laser pulse energy, high PRR and excellent beam quality unattainable for most conventional models is the peculiarity of the LQ629 laser.
HIGH PULSE ENERGY

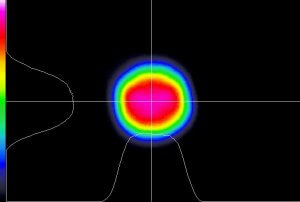

EXCELLENT BEAM QUALITY
ALL HARMONICS AVAILABLE UP TO 213 NM
COMPACT SINGLE-PHASE POWER SUPPLY
NO EXTERNAL WATER REQUIREMENTS

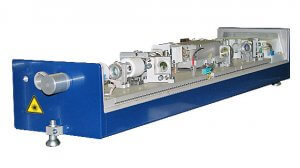

Active elements of master oscillator and amplifier are installed in one pump chamber and are pumped by a single flash lamp. The master oscillator is based on the time-proven ring cavity design ensuring excellent beam quality while the classical single-pass amplifier is supplemented with the optics compensating thermooptical aberrations.
Particularly due to this technical solution the LQ629 provides unique combination of parameters in a compact, reliable and inexpensive-in-operation design.
All the critical components of the laser are thermally stabilised which in combination with vibration-proof design ensures unsurpassed long-term stability of output radiation. The efficient thermostats used in the LQ629 ensure warm-up time of less than 10min.
To reduce your time expenses on routine service of the LQ629 we provided flash lamp life time of more than 50 million pulses and foreseen easy and quick procedure of its replacement.
It should be noted that the laser design allows to replace the flash lamp without removing the laser head upper cover. Such a design concept considerably reduces risks of the optical components contamination as well as increases operational reliability of the device.

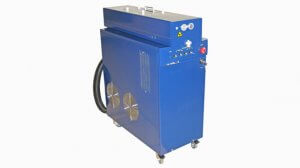

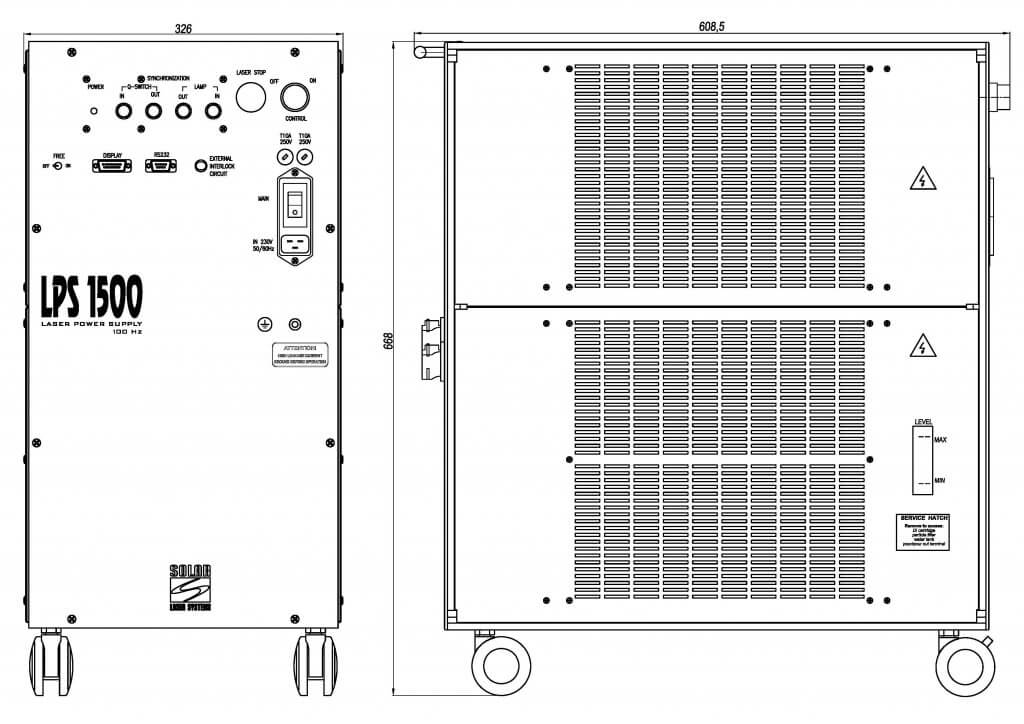

Closed-loop water-to-air cooling system is integrated into a compact single-phase laser power supply which can be controlled both from PC and via the remote control unit.

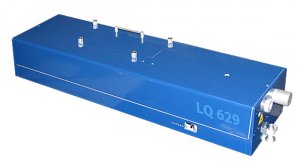

100Hz Nd:YAG Laser model LQ629
