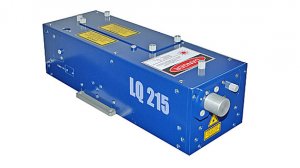

The LQ215 laser is built on the basis of a model produced for aerospace industry and combines excellent beam quality required for advanced scientific research with a highest reliability of industrial equipment.
EXCELLENT BEAM QUALITY
BUILT-IN HARMONIC GENERATORS UP TO 213 NM
DUST- AND WATER-PROOF DESIGN
RELIABILITY OF INDUSTRIAL EQUIPMENT
COMPACT SINGLE PHASE POWER SUPPLY
NO NEED FOR EXTERNAL WATER
Original and reliable optical scheme ensures compensation of both astigmatism and thermooptical distortions and places at your disposal laser radiation of the highest quality.
One more peculiarity of the laser optical scheme is that all the components operate at loads considerably lower than the admissible values. Such a smooth operation mode not only increases life time of the components but also ensures unique operational reliability of the whole laser. As a result, you can use the LQ215 laser for your experiments day-to-day and year-to-year having forgotten about repairs and other unpleasant operation costs.
All the laser optical components are installed on a rigid base fixed to the housing with specially developed dampers. Due to this, mechanical vibrations and housing stress no way influence the quality of the cavity alignment.
All the critical components of the laser are thermally stabilised which in combination with vibration-proof design ensures unsurpassed long-term output radiation stability. The efficient thermostats used in the LQ215 ensure warm-up time of less than 10min.
To reduce your time expenses on routine service of the LQ215 we provided flash lamp life time of more than 50 million pulses and foreseen easy and quick procedure of its replacement.
It should be noted that the laser design allows to replace the flash lamp without removing the laser head upper cover. Such a technical solution considerably reduces risks of the optical components contamination as well as increases operational reliability of the device.

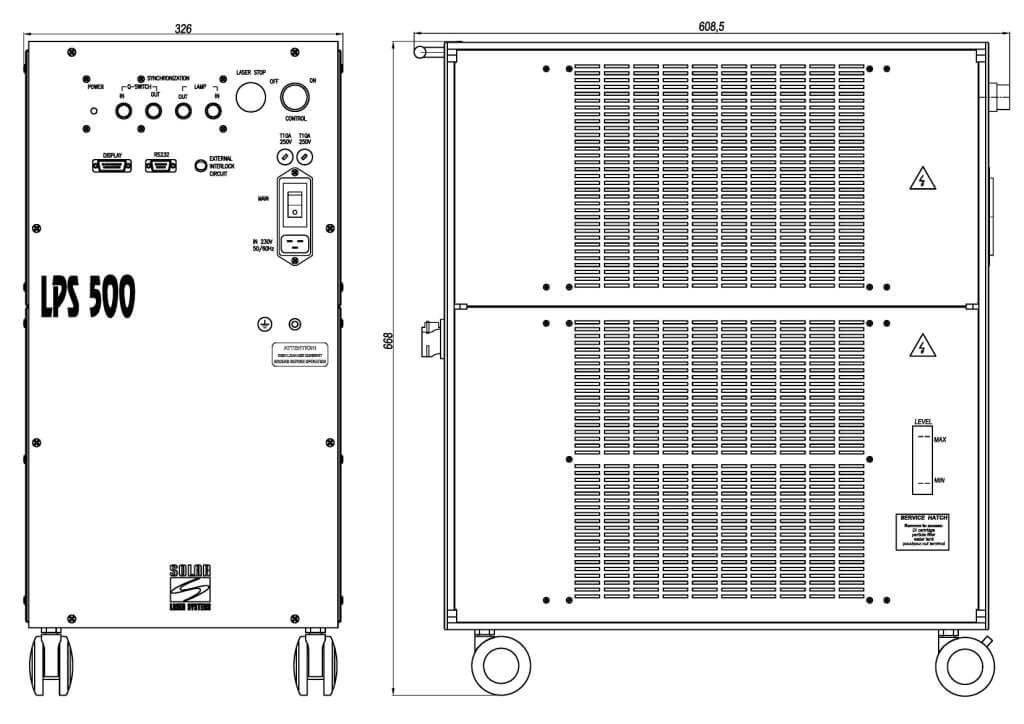

Closed-loop water-to-air cooling system is integrated into a compact single-phase laser power supply which can be controlled both from PC and via the remote control unit.

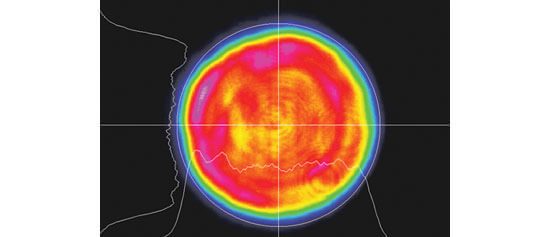

Typical LQ215 laser beam profile at 1064 nm. Near field
