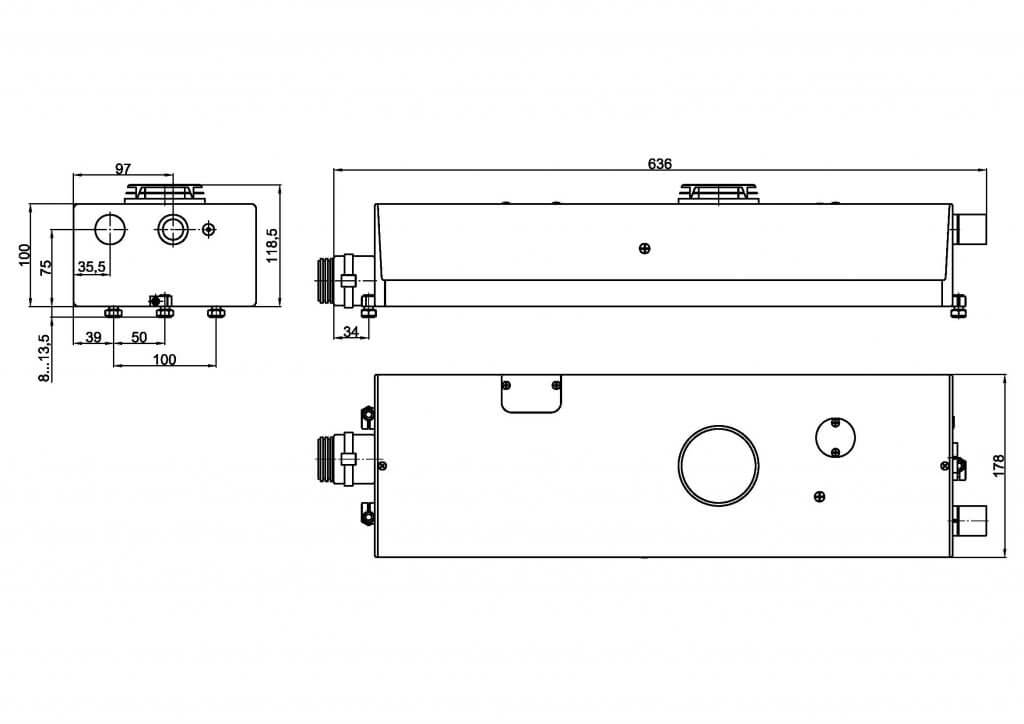

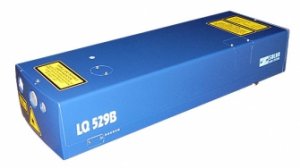

The LQ529 is a series of popular compact lamp-pumped Nd:YAG lasers offering uncompromising combination of the main parameters: high output power, exceptional beam quality and minimum laser head and power supply dimensions.
- HIGH PRR
- HIGH PULSE ENERGY UP TO 0.5 J
- EXCELLENT BEAM QUALITY
- ALL HARMONICS AVAILABLE UP TO 213 NM
- COMPACT SINGLE-PHASE POWER SUPPLY
- NO EXTERNAL WATER REQUIREMENTS

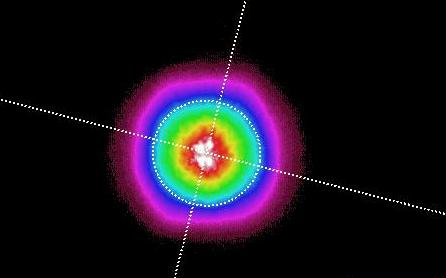

All the lasers of the LQ529 series are based on ring cavity and incorporate a pump chamber with diffuse ceramic reflector. Due to this technical solution the LQ529 lasers, unlike the lasers with traditional linear cavity, provide homogeneous close to flat-top laser beam profile and possess exceptional stability of output energy and spatial radiation parameters. Beam pointing stability of the LQ529 is better than 20 µrad in the vertical plane and 80 µrad in the horizontal plane.
All the critical components of the laser are thermally stabilised which in combination with vibration-proof design ensures unsurpassed long-term output radiation stability. The efficient thermostats used in the LQ529 ensure warm-up time of less than 10 min.
To reduce your time expenses on routine service of the LQ529 we provided flash lamp life time of more than 30 million pulses and foreseen easy and quick procedure of its replacement.

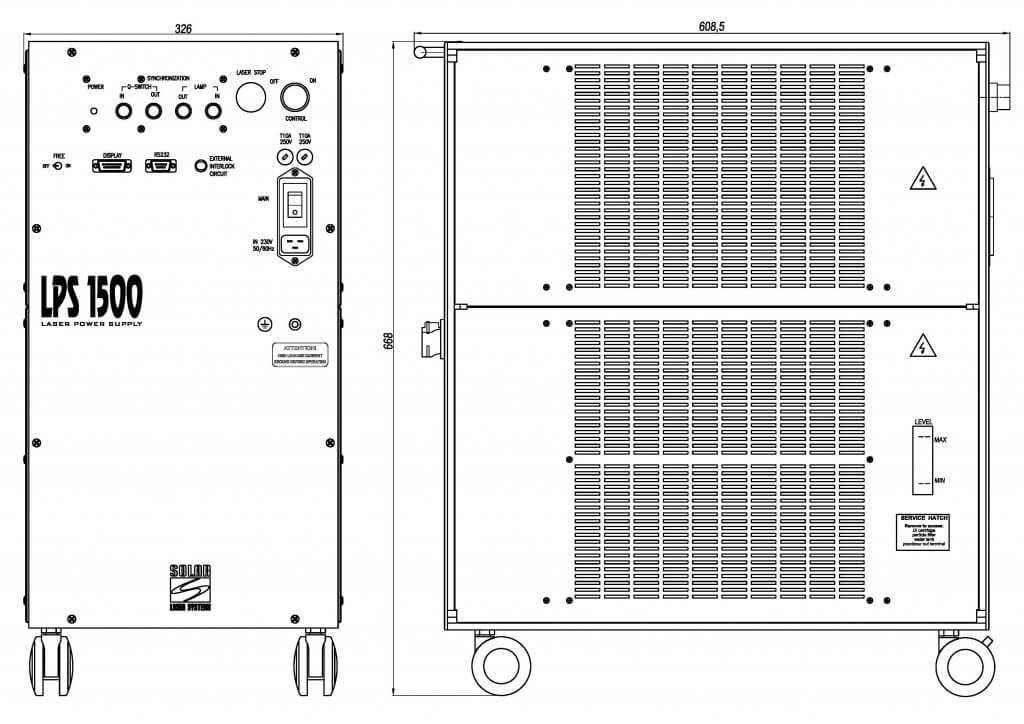

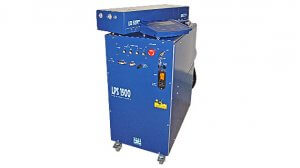

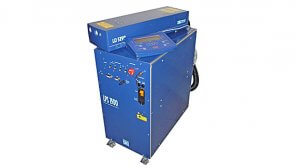

Closed-loop water-to-air cooling system is integrated into a compact single-phase laser power supply which can be controlled both from PC and via the remote control unit.
Pulsed Nd:YAG Laser Model LQ529
