USB9097 Miniconverter

  • 1.Description :
  • USB9097 is Rding Tech’s 1 wire adapter. It fully can replace DS9097, DS9490 of MAXIM ( http://www.maxim-ic.com/ )
  • The main differences of them is:
  • (1) USB9097 connects to computer through USB port; DS9490 connects to computer through serial port.
  • (2) USB9097 connects to sensors through 3.5 mm Audio cables; it can build hundreds of miniLAN network. Very suit for Non-professionals DIY.
  • At present, more and more Maxim’s 1wire of products have already appeared in our life. You can connect 1 wire into your computer through it and easy to get the data from the computer .such as: get temperature of DS18b20 or datas of ibutton products.
  • Adopt DS2480B+USB2UART IC, more detailed product performance; please refer to MAXIM DS2480B datasheet.
  • 2. Product photos :
  • 3. There are two types of 18b20 probe can be directly connect to 1 wire adapter. Such as:

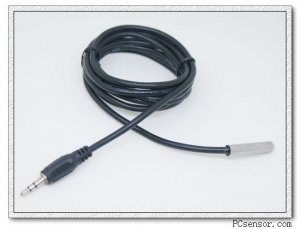

  • (1) Dx sensor
  • Temperature range of Soft line probe: 55~+125C;
  • (2)H200 sensor
  • Temperature range of plug-in handle Probe: -55~+125C ;
  • (3) can connect with our 1wire relay.
  • (4) can connect with our 1WAD.
